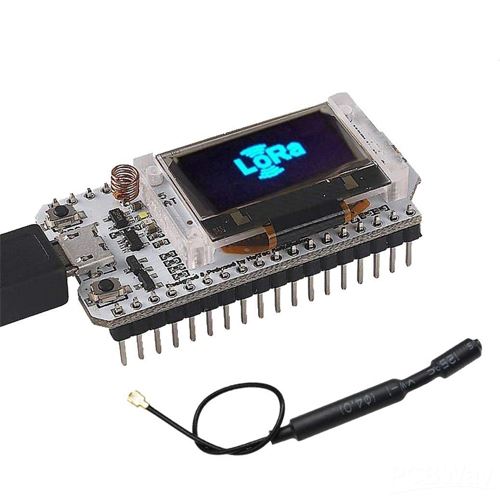

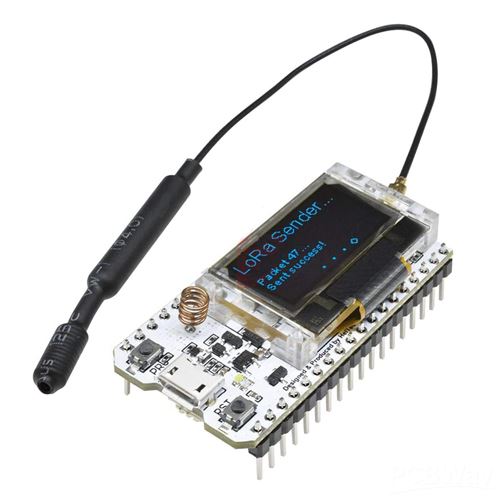

ESP32 LoRa SX1276 868 915MHZ Dual Core 240MHz WiFi Module Low Power Consumption with 0.96’’ OLED Display and Antenna

Description:

This product is based on the WIFI Kit 32 added SX1276 chip, that is, LoRa remote modem, 868MHz frequency, about -139dBm high sensitivity, +20 dBm power output, high reliability, transmission distance (measured open area communication distance 3.6Km).

Onboard 32MByte Flash, Wi-Fi antenna, 0.96-inch blue OLED display, lithium battery charging circuit and interface, CP2102 USB to serial chip, the perfect support for Arduino development environment, can be very simple and fast for program verification and product development.

ESP32 LoRa SX1276 868 915MHZ Dual Core 240MHz WiFi Module Low Power Consumption with 0.96’’ OLED Display and Antenna

Specification:

  • Operating voltage: 3.3V to 7V
  • Operating temperature range: -40 °C to + 90 °C
  • Supports Sniffer, Station, softAP and Wi-Fi Direct modes
  • Data rate: 150 Mbps 11n HT40,72 Mbps 11n HT20,54 Mbps 11g, 11 Mbps 11b
  • Transmit power: 19.5 dBm 11b, 16.5 dBm 11g, 15.5 dBm 11n
  • Receiver sensitivity up to - 139 dBm
  • UDP continues to throughput by 135 Mbps

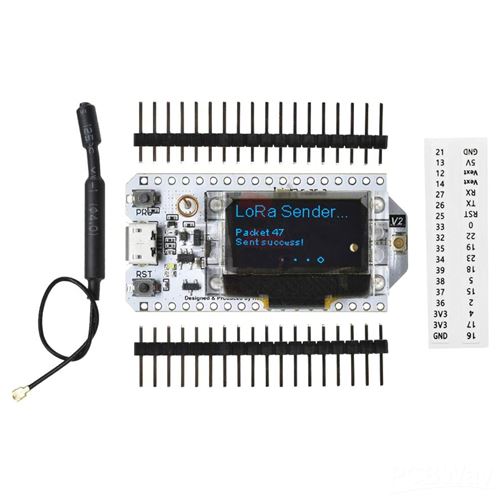

Part list:

  • 1 * WIFI LoRa 32 Development Board with OLED
  • 1 * 868/915MHz Antenna
  • 1 * Pin sticker
  • 2 * Pin headers
