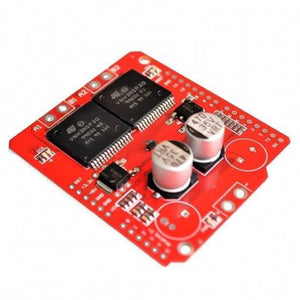

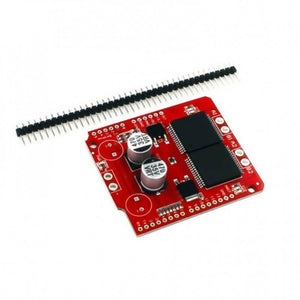

Power your high-current DC motors with the Dual Monster Moto Shield VNH3ASP30. This powerful motor driver offers exceptional performance, versatility, and easy integration with your Arduino projects.

Key Features:

• Dual VNH3ASP30 motor drivers for high-current applications
• 14A continuous current rating (peak 30A)
• Current sensing for precise control
• MOSFET on-resistance: 19 mΩ (per leg)
• Maximum PWM frequency: 20 kHz
• Thermal shutdown and undervoltage/overvoltage protection
• Easy-to-use screw terminals for motor and power connections

Specifications:

• Driver Model: VNH3ASP30
• Operating Voltage: 12-16 VDC
• Peak Current: 14A
• Continuous Current: 30A
• Number of Channels: 2
• Battery Protection Mode: Yes
• Over-Current Protection: Yes
• Thermal Protection: Yes
• Dimensions: 60 x 54 x 12 mm
• Weight: 19 gm

Applications:

• Robotics
• Autonomous vehicles
• Industrial automation
• Model cars and planes
• DIY projects
