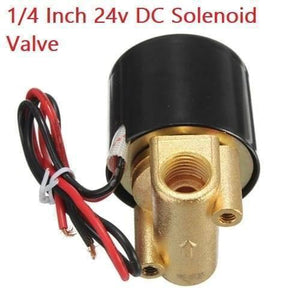

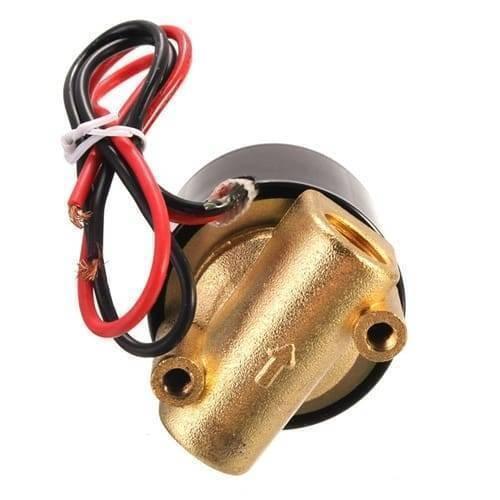

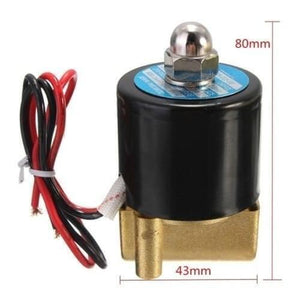

This 1/4 Inch 24v Dc Solenoid Valve is a liquid or gas flow control device. An electrical current is used to regulate the water solenoid valve, which is passed through a coil. The automation of fluid and gas control is feasible thanks to the Air Solenoid valve. Modern solenoid valves have a small design and offer rapid operation, great dependability, and long service life.

Features And Specifications Of 24v 1/4 Inch Electric Solenoid Valve for Air Water/Replacement Brass Valve:

• High-quality replacement part for use with pipelines in water, air, and diesel applications
• Acting Motion: Direct action
• Medium: Air, water, diesel
• Operating Type: Directly driven
• State: Normally closed
• Supply Voltage: 24v
• Pipe Size: 1/4″
• Operating Pressure: 0kg/cm2 – 10kg/cm2
• Fluid Temperature: -5-80 Degree
• CV: 24v DC
• Operating Viscosity: Under 20CST
• Installation: Fluid direction should be as the arrow shows
• Valve Body: Brass
• Oil Seal Material: NBR

Package Includes:

• 1 x 1/4 Inch hole sized solenoid valve
