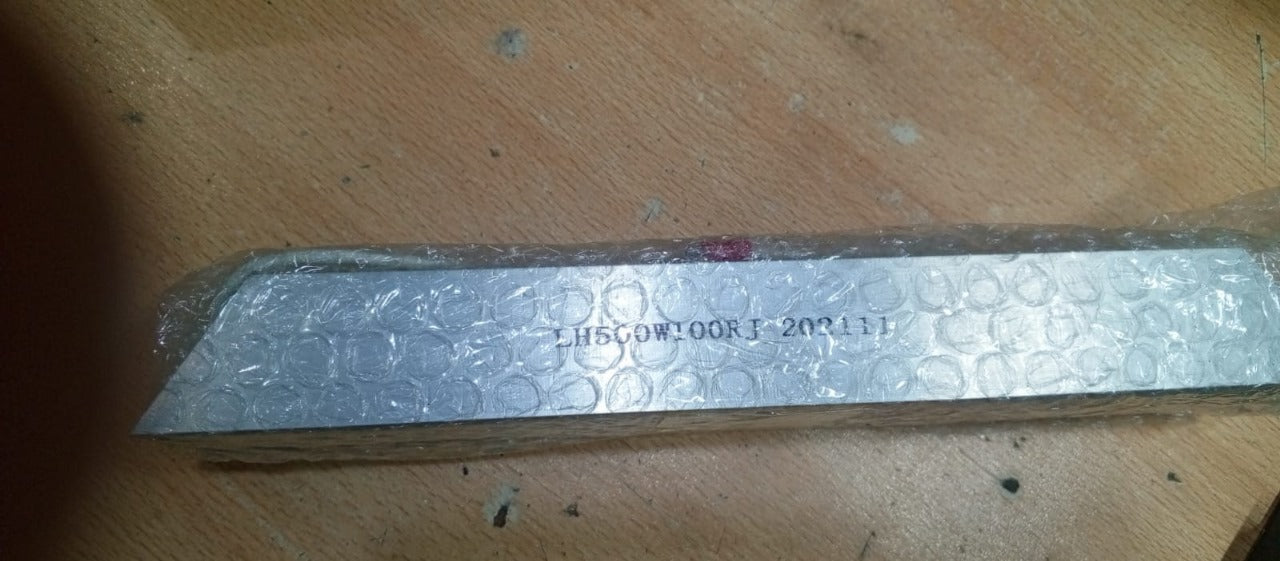

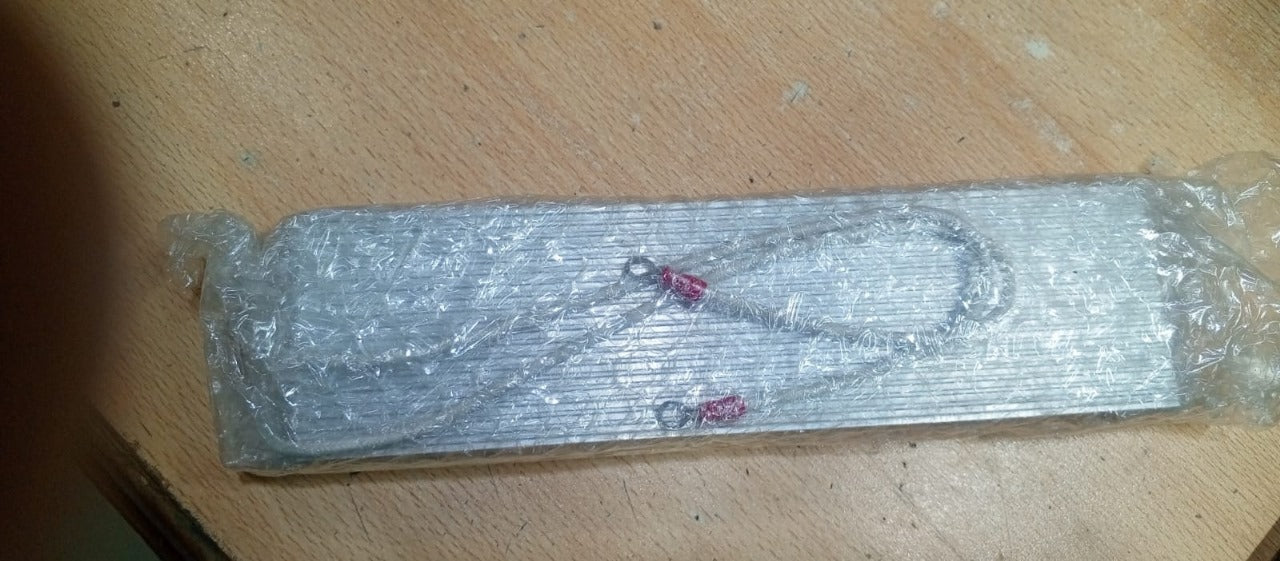

The 100 Ohm 500W Braking Resistor is designed for use in high-power applications such as motor drives, VFDs, and dynamic braking systems. Featuring an aluminum housing for efficient heat dissipation, it ensures safe energy discharge during braking cycles and overload conditions.

Key Features

• First, get a resistance of 100 Ohm with ±5% tolerance for accurate load control.
• Next, rely on its 500-watt power rating for high-power applications.
• Then, enjoy strong protection with a high-quality aluminum housing.
• After that, count on its heat-resistant design for long-lasting performance.
• Also, mount it easily using the built-in M6 screw holes.
• Finally, use it confidently in VFDs, inverters, motor drives, and elevator systems.

Applications

• Variable Frequency Drives (VFDs)
• Elevator and escalator motor braking
• CNC machinery and automation systems
• Energy discharge during motor deceleration

Related Products

• 4mm Shaft Multi Turn Rotary Wire Wound Potentiometer
• Aluminium 100Uf 50V Electrolytic Capacitor
• Single Turn Trimmer Potentiometer

Learn More

• Brake resistors: No more thermal overloading
• Motors: what is a brake resistor, and what is it used for?

Frequently Asked Questions (FAQs)

Q1: What does a braking resistor do?

A: It dissipates excess electrical energy during braking in motors and VFDs, preventing damage to the system.

Q2: Is this suitable for industrial VFD drives?

A: Yes, it's ideal for industrial VFD systems, elevators, and CNC machines requiring braking support.

Q3: Can it be used continuously at 500W?

A: It can handle continuous power near 500W with proper heat sinking and ventilation.

Q4: What are the dimensions?

A: Typically around 260mm x 50mm x 50mm (varies by brand). Confirm with seller for exact sizing.

Package Includes

• 1 × 100 Ohm 500W Braking Resistor
