12x12x7.5mm Tactile Push Button Switch

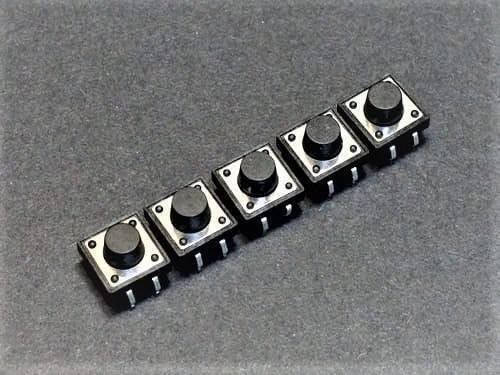

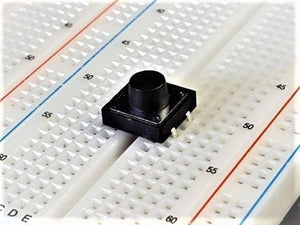

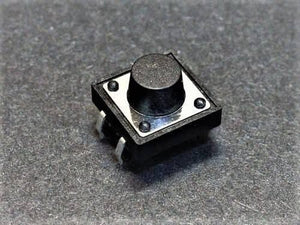

12x12x7.5mm Tactile Push Button Switch is used as general-purpose PCB tactile pushbutton. Tactile Push Button Switch colour may differ from the image. This is a standard 12mm square momentary button. What we really like is the large button head and good tactile feel (it ‘clicks’ really well). This button is great for user input on a PCB or a good, big reset button on a breadboard. Breadboard friendly!
Features of 12x12x7.5mm Tactile Push Button Switch:
- NO (Normally Open) contacts.
- Good snap action feels with an audible click.

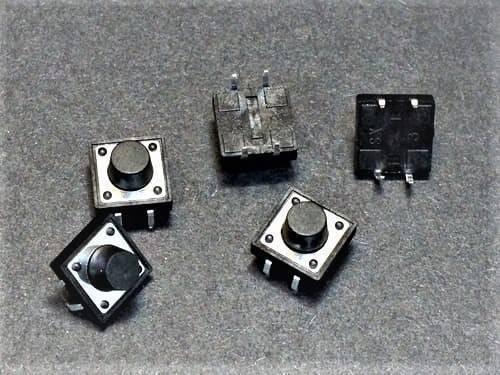

- 4-terminal, these switches are 4-terminal normally open pushbuttons. Pins are formed solder type on 5.08mm (0.2″) centres on one side x 12.7mm (0.5″) and are breadboard friendly.
- Breadboard friendly.
- The 4-pin layout works well in solderless breadboards or perf boards.
Specifications :
| Main Colour | Black, Silver Tone |
| Product Name | Tactile Switch |
| Net Weight | 10g |
| Country of Manufacture | CHINA |
| Switch Size | 12x12x7.5mm |
| Material | Plastic, Metal, Electric Part |
| Withstand Voltage | 50Hz/min |
| Rated current | 50mA 12VDC |
| Contact resistance | 30mΩ max |
| Insulation resistance | 100mΩ min |
| Operating temperature | -30 to + 70 |
| Operating Force | 100~350g |
| Life | 100000times |
Package Includes:
1 x 12x12x7.5mm Push Button Switch
