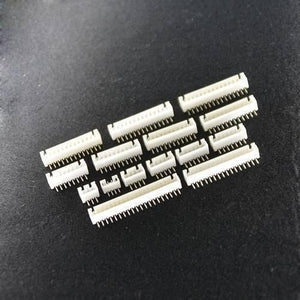

The 4 Pin 2.5mm JST XH Style PCB Mount Male Connector is a versatile and reliable component suitable for a wide range of electronic projects. This high-quality connector features a secure design and is compatible with various female connectors, making it a valuable addition to your toolkit.

Key Features:

• Reliable Connection: Ensures a secure and stable connection between devices.
• Versatile Compatibility: Works with both JST XH female connectors and other 0.1″-pitch female connectors.
• Durable Construction: Built to last with a rugged and reliable design.
• PCB Mountable: Designed for easy installation on printed circuit boards.
• Wide Operating Temperature Range: Functions reliably from -25°C to +85°C.

Specifications:

• Number of Pins: 4
• Pitch: 2.5mm
• Mounting Height: 9.8mm
• Current Rating: 3A AC, DC (AWG #22)

• Voltage Rating: 250V AC, DC

• Contact Resistance: Initial value/10mΩ max.

• Insulation Resistance: 1000 MΩ min

• Withstanding Voltage: 1000V AC/minute

• Applicable Wire: AWG #30 to #22



Order Now:

Upgrade your electronic projects with our 4 Pin 2.5mm JST XH Style PCB Mount Male Connector. Experience the reliability and versatility of this essential component.
