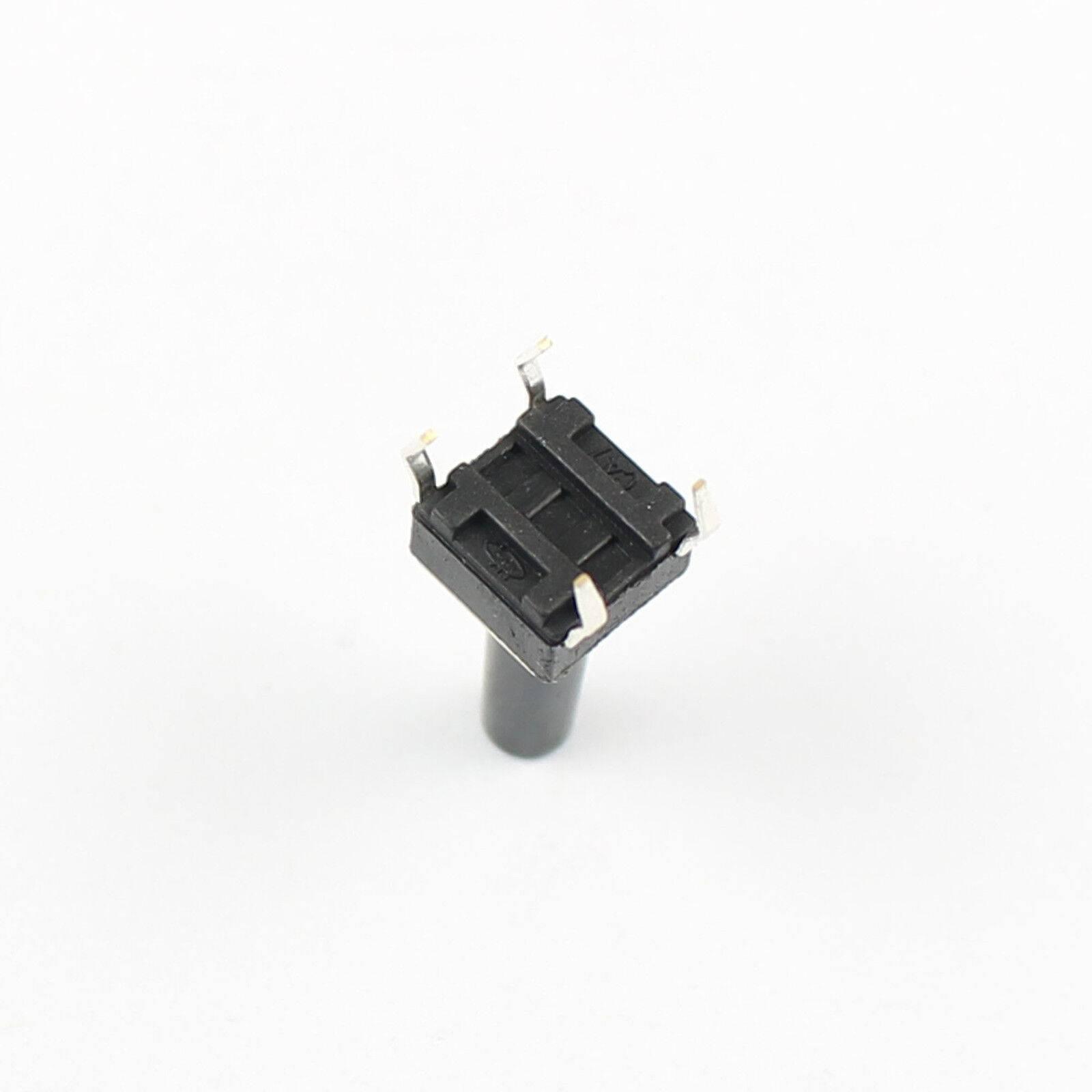

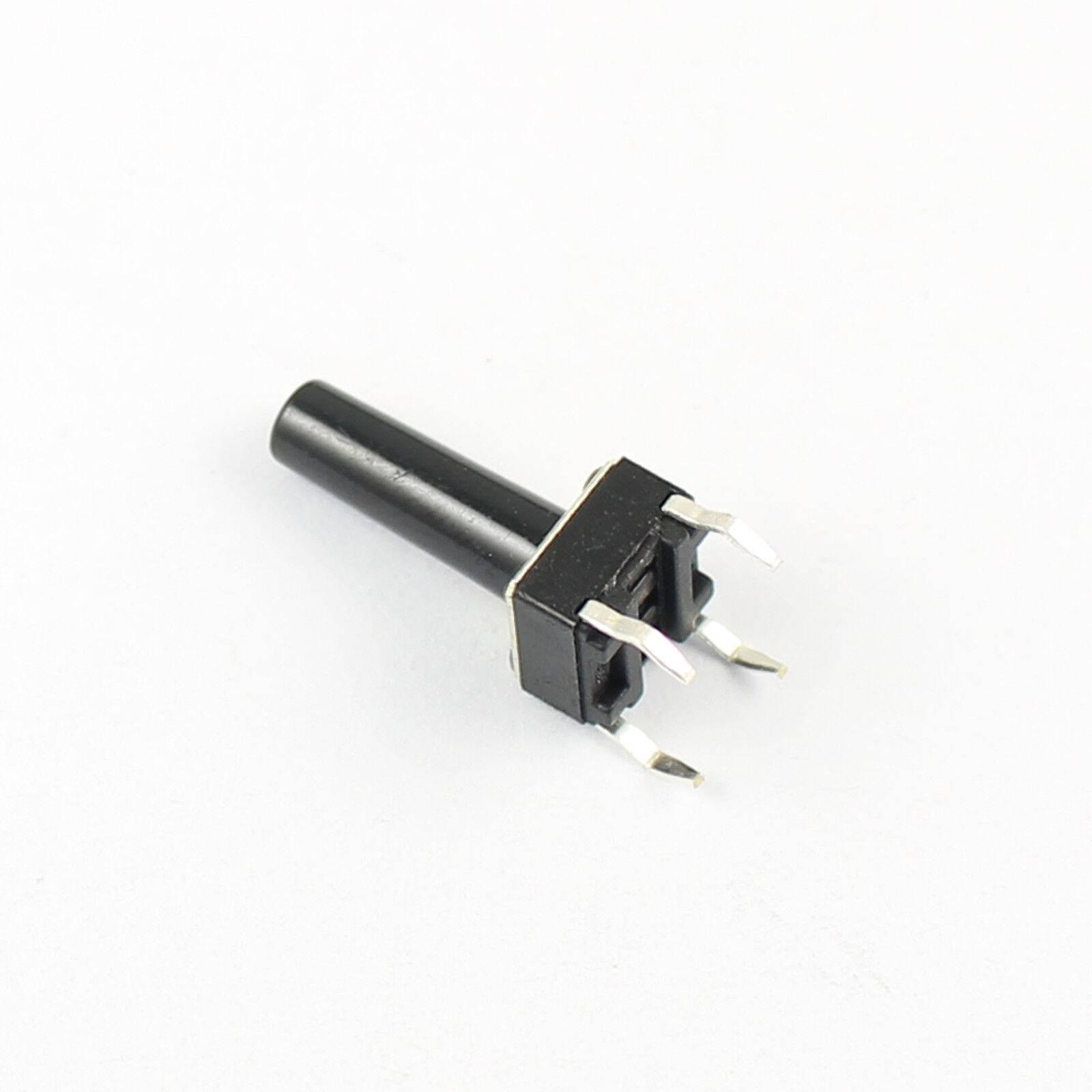

6x6x14mm Momentary Tactile Tact Push Button Switch 4 Pin Dip High 14mm
Pickup available at 16 Hall Road
Usually ready in 24 hours
6x6x14mm Momentary Tactile Tact Push Button Switch 4 Pin Dip High 14mm
Features:
- BRAND NEW!
- Pin: 4 Pin
- Dimension: 6 x 6 x 14mm (L*W*H)
- Button Dia.:3.5mm
- High 14mm
- Materia: Plastic, Metal, Electric Parts
- Color: Black, Silver Tone
Electrical Characteristics:
- Rated Load :DC12V 0.1A
- Contact Resistance :<=0.03Ω
- Withstand Voltage :AC250 V (50Hz) /MIN
- Actuation Force :250gf+-50gf
- insulation Resistance :>=100MΩ
- Temperature :-25°~+-85°C
- Life :100000 times
Package Included:
- 1 X Momentary Tactile Tact Push Button Switch 4 Pin DIP 6x6x14mm High 14mm
