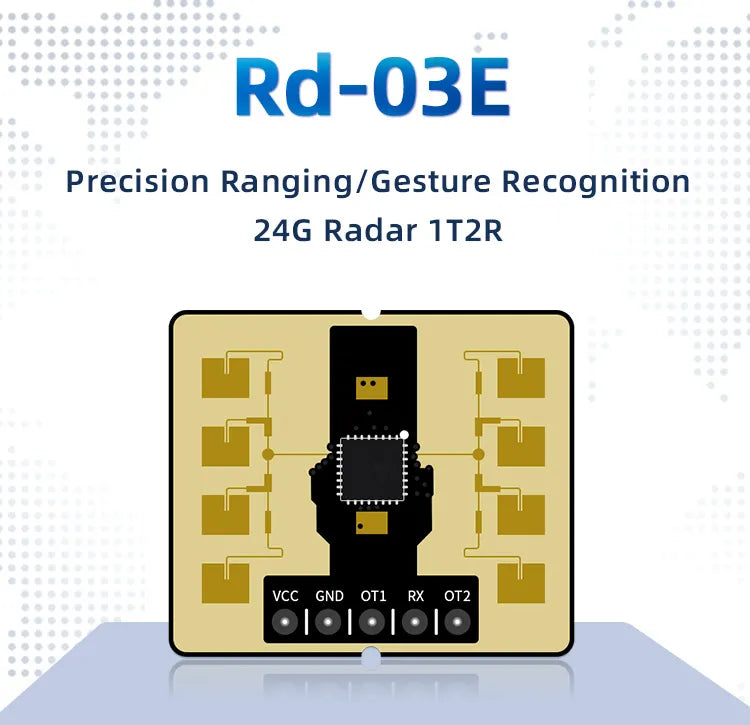

Rd-03E is a radar dectector module equipped with ICLEGEND’s S3KM111L chip developed by Shenzhen Ai-Thinker Technology Co., Ltd. It operates in the 24GHz K-band, with a modulation bandwidth of up to 1GHz per single frequency scan. This module uses the FMCW waveform and the advanced signal processing technology proprietary to the S3 series chip to achieve accurate human sensing range measurement, distance information display and gesture recognition. The Rd-03E module can detect and identify movements and micro-movements of the human body, and report real-time distances. It can detect targets and gestures in designated areas and report the results in real time.

Rd-03E specification：CN EN

Rd-03E Accurate ranging firmware（firmware №2268）：click to download

Rd-03E Gesture recognition firmware（firmware №2269）：click to download

STM32 drives Anxinke Rd-03E to light up the LED light tutorial:click to download

Rd-03E Accurate ranging host computer：click to download

Rd-03E Gesture recognition host computer：click to download

Rd-03E quick start documentation
