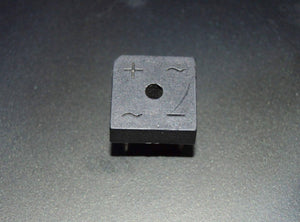

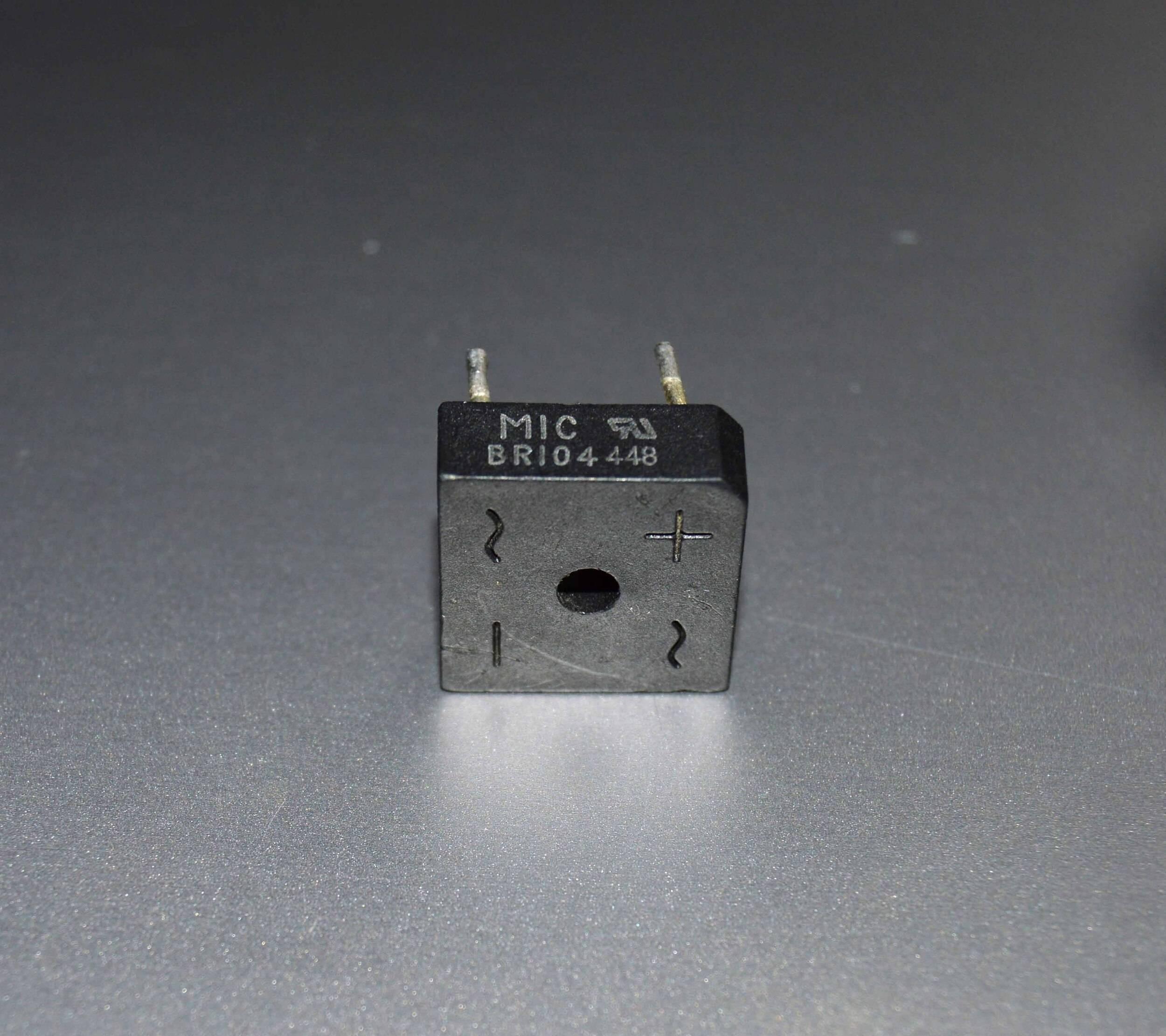

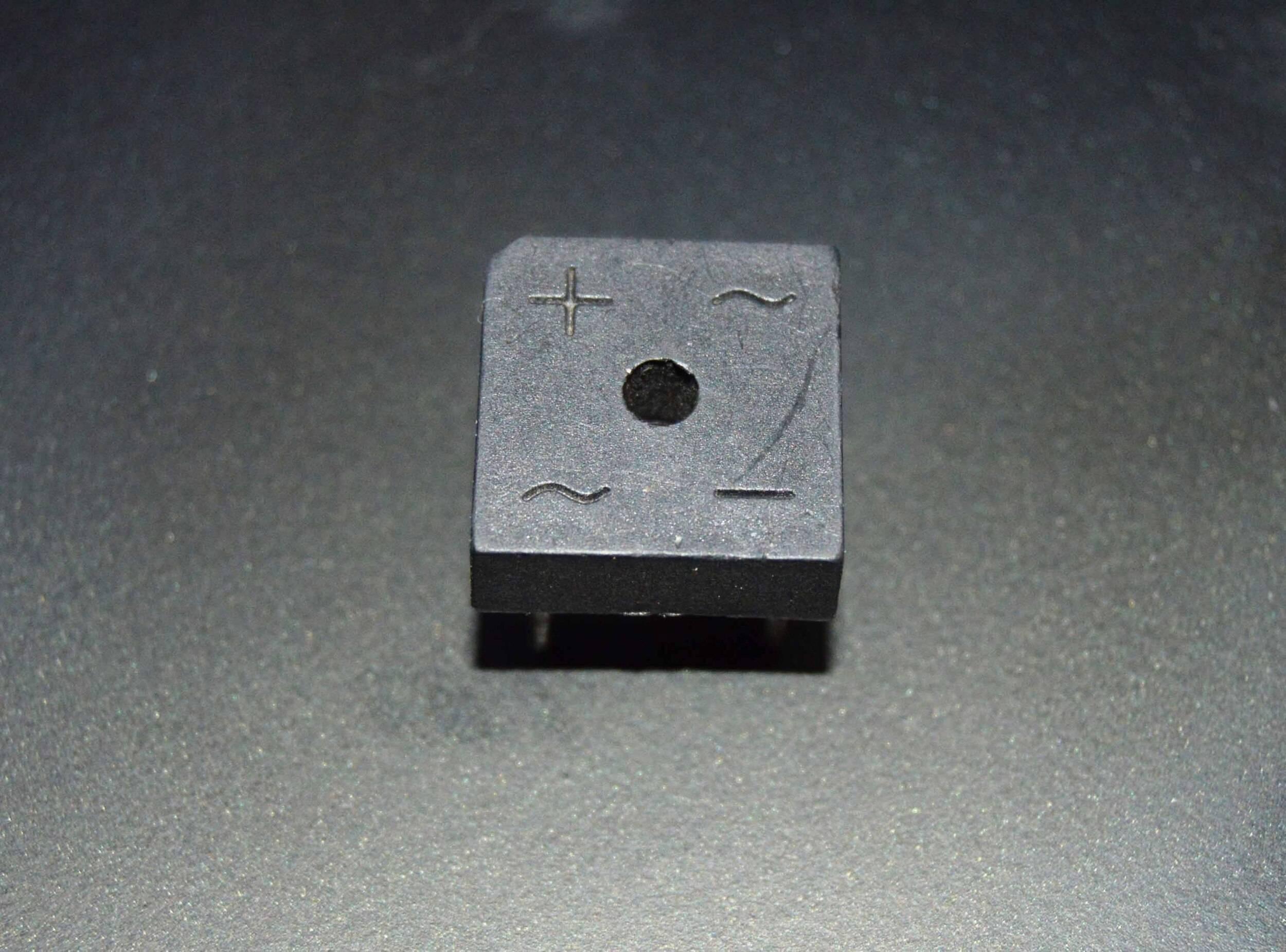

Rectron Bridge Ractifier Br104 (used Condition)
This is a general-purpose diode bridge rectifier that can easily handle 5Aa load current for the load current. You can use it with a transformer, power supply, and many other applications that need 0 to 5A maximum current and 0 to 400v input.
Specifications:
- type number: BR104
- If (peak current): 200A
- Vf (forward voltage): 1.1V max.
- Vrrm (reverse voltage): 400V max.
- Ir (reverse current): 10µA
- Io (rectified current): 10A max.
- 19.6 mm
- 19.6 mm
- Height:7.5 mm
