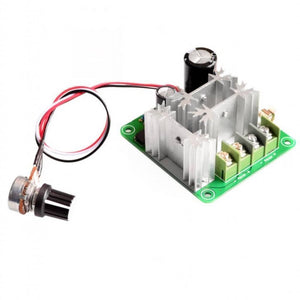

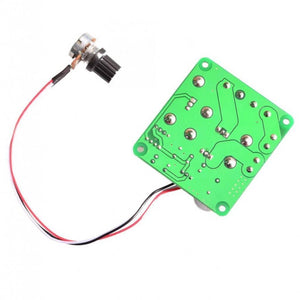

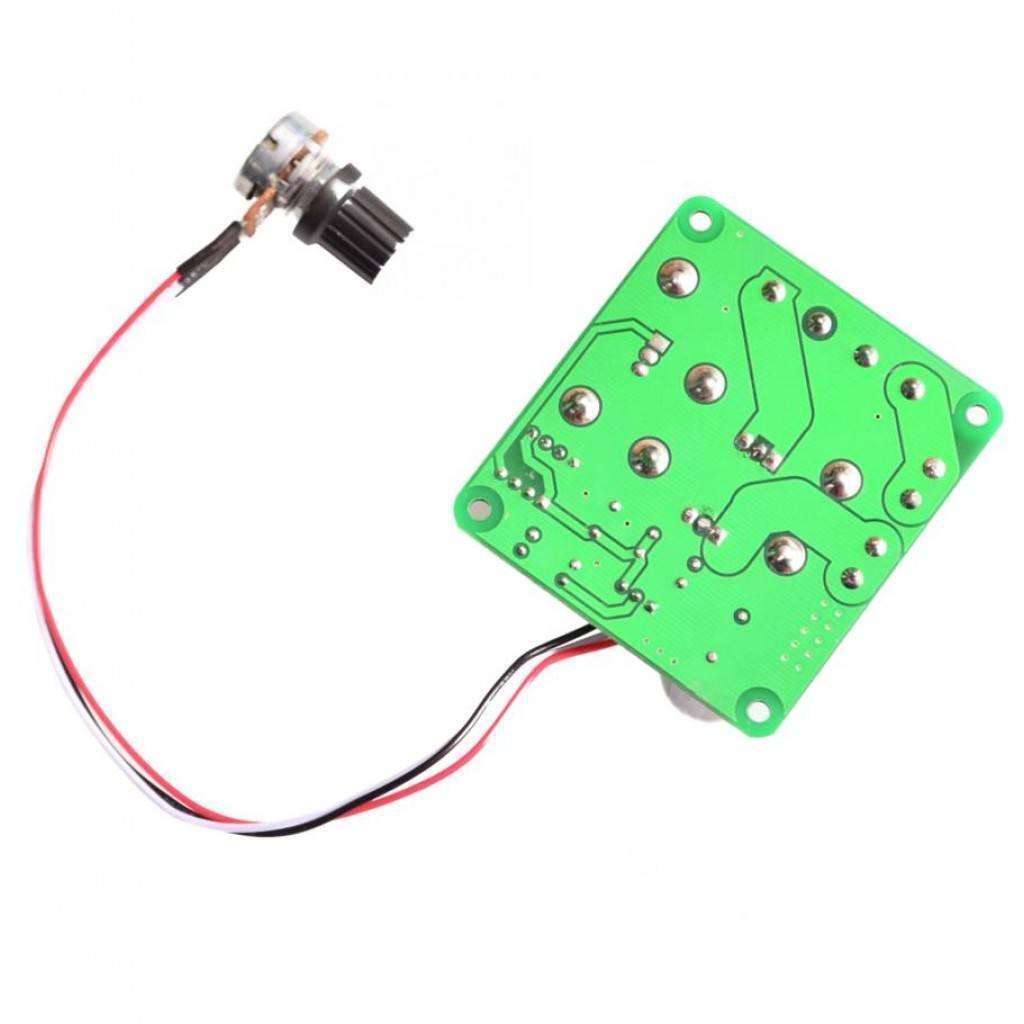

Dc Motor Speed Controller Dc 6v-90v 15a With Potentiometer
6V-90V 15A PWM DC Motor Speed Controller w/ Knob--High Efficiency, High Torque, Low Heat Generating with Reverse Polarity Protection, High Current Protection From left to right they are Motor-, Motor+, Power-, Power+
Features
- Operating voltage: DC6V-DC90V
- Control Power: 0.01-1000W (Max Current:15A)
- Quiescent Current: 0.05A (standby)
- PWM duty cycle: 0% -100%
- PWM Frequency: 15khz
- PCB Board: High temperature FR-4 PCB Thickness 1.6mm
- Reverse polarity protection:YES
- High-current protection: YES ( 20A fast fuses ceramic fuse )
- Control voltage over-voltage protection: YES
- Control voltage : 0V - 5V ( voltage control type , you can control the speed of the motor directly with PLC )
- Stepless speed regulation: The governor can control the motor speed from 0% -100% in stepless speed changing.
- Module Size (L x W x H): Approx. 64 x 59 x 22mm
- Size (L x W x H ): Approx. 64 x 59 x 22 mm
- Material: Plastic, metal
Package Includes
- 1 x DC Motor Speed Controller DC 6V-90V 15A with Potentiometer
