Dual Display Adjustable Over Voltage Current And Under Voltage Protective Device Protector Relay 63a And 40 a 220v 230v
Dual Display Adjustable Over Voltage Current And Under Voltage Protective Device Protector Relay 63a And 40 a 220v 230v
Dual Display Adjustable Over Voltage Current And Under Voltage Protective Device Protector Relay 63a And 40 a 220v 230v
Dual Display Adjustable Over Voltage Current And Under Voltage Protective Device Protector Relay 63a And 40 a 220v 230v
Dual Display Adjustable Over Voltage Current And Under Voltage Protective Device Protector Relay 63a And 40 a 220v 230v
Dual Display Adjustable Over Voltage Current And Under Voltage Protective Device Protector Relay 63a And 40 a 220v 230v
Dual Display Adjustable Over Voltage Current And Under Voltage Protective Device Protector Relay 63a And 40 a 220v 230v
Dual Display Adjustable Over Voltage Current And Under Voltage Protective Device Protector Relay 63a And 40 a 220v 230v

Dual Display Adjustable Over Voltage Current And Under Voltage Protective Device Protector Relay 63a And 40 a 220v 230v

Sale price Rs.2,400.00
Log in to use Wishlist
Add to Compare

Notify me if back in stock

Enter your email address to be notified if the product becomes available again.
SKU: B68

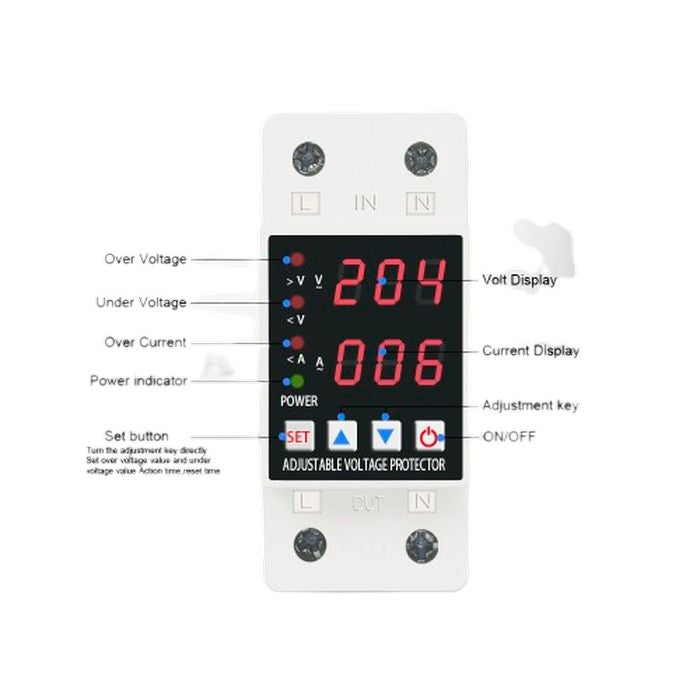

Functions:
1.Over-voltage protection
2.Under-voltage protection
3.Over-current protection
4.Automatic recovery
5.Voltage display(voltage measurement)
6.Current display (current measurement)
7. Voltage calibration: Voltage +-10% adjustable. A13
8. Restore factory settings: press the down button for more than 12s
9.Fault inquiry: Press the UP button from more than 12S

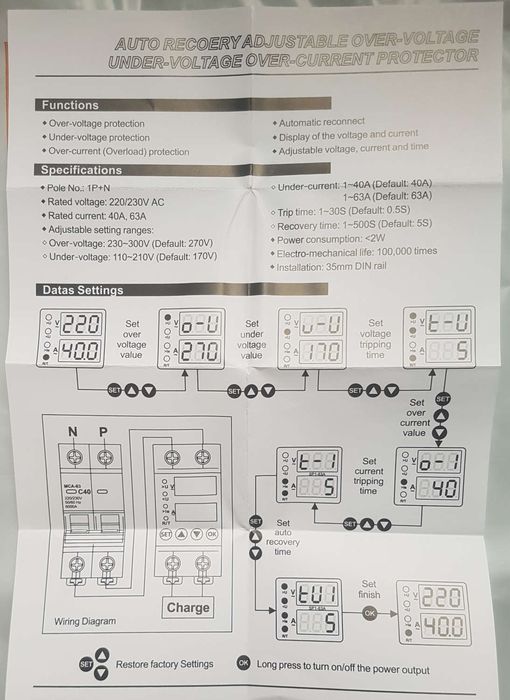

Product Parameters:
1.Model number:AVP-63
2.Power supply:230VAC 50/60Hz
3.Max.Loading power:1~40A Adjustable(default:40A)
1~63A Adjustable(default:63A)
4.Over-voltage protection value range:230V~300~OFF (default:270V)
Over-voltage recovery voltage range:225V--295V(default:250V)
Over-voltage protection action time:0.1s~30s (default value:0.5s)
Over-voltage recovery time:1s~500s(default:30s)
5.Under-voltage protection value range:140V--210V --OFF (default:170V)
Under-voltage recovery voltage range:145V--215V (default:190V)
Under-voltage protection action time:0.1s~30s(default:0.5s)
Under-voltage recovery time:1s~500s(default:30s)
6.Over-current adjustment range:1-40A (default:20A)1-63A(default:40A)
Over-current action range:0.1~30second(default:0.5s)
Over-current recovery time:1s~500s(default:30s)
7.Power-on time:1s~500s(default:10s)
9.Power consumption: <2W
10.Electric machinery life : 100,000 times
11.Installation:35mm DIN rail
Functions:
1.Over-voltage protection
2.Under-voltage protection
3.Over-current protection
4.Automatic recovery
5.Voltage display(voltage measurement)
6.Current display (current measurement)
7. Voltage calibration: Voltage +-10% adjustable. A13
8. Restore factory settings: press the down button for more than 12s
9.Fault inquiry: Press the UP button from more than 12S
Product Parameters:
1.Model number:AVP-63
2.Power supply:230VAC 50/60Hz
3.Max.Loading power:1~40A Adjustable(default:40A)
1~63A Adjustable(default:63A)
4.Over-voltage protection value range:230V~300~OFF(default:270V)
Over-voltage recovery voltage range:225V--295V(default:250V)
Over-voltage protection action time:0.1s~30s(default value:0.5s)
Over-voltage recovery time:1s~500s(default:30s)
5.Under-voltage protection value range:140V--210V --OFF(default:170V)
Under-voltage recovery voltage range:145V--215V (default:190V)
Under-voltage protection action time:0.1s~30s(default:0.5s)
Under-voltagerecovery time:1s~500s(default:30s)
6.Over-current adjustment range:1-40A (default:20A)1-63A(default:40A)
Over-current action range:0.1~30second(default:0.5s)
Over-currentrecovery time:1s~500s(default:30s)
7.Power-on time:1s~500s(default:10s)
9.Power consumption : <2W
10.Electric machinery life : 100,000 times
Functions:
1.Over-voltage protection
2.Under-voltage protection
3.Over-current protection
4.Automatic recovery
5.Voltage display(voltage measurement)
6.Current display (current measurement)
7. Voltage calibration: Voltage +-10% adjustable. A13
8. Restore factory settings: press the down button for more than 12s
9.Fault inquiry: Press the UP button from more than 12S
Product Parameters:
1.Model number:AVP-63
2.Power supply:230VAC 50/60Hz
3.Max.Loading power:1~40A Adjustable(default:40A)
1~63A Adjustable(default:63A)
4.Over-voltage protection value range:230V~300~OFF(default:270V)
Over-voltage recovery voltage range:225V--295V(default:250V)
Over-voltage protection action time:0.1s~30s(default value:0.5s)
Over-voltage recovery time:1s~500s(default:30s)
5.Under-voltage protection value range:140V--210V --OFF(default:170V)
Under-voltage recovery voltage range:145V--215V (default:190V)
Under-voltage protection action time:0.1s~30s(default:0.5s)
Under-voltagerecovery time:1s~500s(default:30s)
6.Over-current adjustment range:1-40A (default:20A)1-63A(default:40A)
Over-current action range:0.1~30second(default:0.5s)
Over-currentrecovery time:1s~500s(default:30s)
7.Power-on time:1s~500s(default:10s)
Functions:
1.Over-voltage protection
2.Under-voltage protection
3.Over-current protection
4.Automatic recovery
5.Voltage display(voltage measurement)
6.Current display (current measurement)
7. Voltage calibration: Voltage +-10% adjustable. A13
8. Restore factory settings: press the down button for more than 12s
9.Fault inquiry: Press the UP button from more than 12S
Product Parameters:
1.Model number:AVP-63
2.Power supply:230VAC 50/60Hz
3.Max.Loading power:1~40A Adjustable(default:40A)
1~63A Adjustable(default:63A)
4.Over-voltage protection value range:230V~300~OFF(default:270V)
Over-voltage recovery voltage range:225V--295V(default:250V)
Over-voltage protection action time:0.1s~30s(default value:0.5s)
Over-voltage recovery time:1s~500s(default:30s)
5.Under-voltage protection value range:140V--210V --OFF(default:170V)
Under-voltage recovery voltage range:145V--215V (default:190V)
Under-voltage protection action time:0.1s~30s(default:0.5s)
Under-voltagerecovery time:1s~500s(default:30s)
6.Over-current adjustment range:1-40A (default:20A)1-63A(default:40A)
Over-current action range:0.1~30second(default:0.5s)
Over-currentrecovery time:1s~500s(default:30s)
7.Power-on time:1s~500s(default:10s)
8.Power consumption : <2W
9Electric machinery life : 100,000 times
