Specifications:

Discharge:

Continuous Discharging Current: 100A

Instantaneous Discharge Current: 120A

Charge:

Charging Voltage: 14.8V (Switching power 15-16V)

Charging Current: 10A (MAX)

Overcharge Protect:

Over-charge Detect: 3.75±0.05V

Protect Delay: 1300MS

Over-charge Release: 3.60±0.05V

Balance:

Detect Voltage: 3.60±0.05V

Release Voltage: 3.59±0.05V

Balance Current: 65mA

Over-discharge Protect:

Over-discharge Detect: 2.1±0.08V

Over-discharge Detect delay: 145S

Release Voltage: 2.3±0.1V

Over-current Protect:

Detect Voltage: 200mV

Detect Delay: 20mS

Current Detect: 120±10A

Release Condition: Cut Load

Short-circuit Protect:

Protect Condition: Cut Load (Not short connect)

Detect Delay: 300uS

Release Condition: Cut Load

Inner Resistance: ≤20mΩ

Self-Consumption:

Working Current: ≤30μA

Sleep Current (when Over-discharge): ≤20μA

Working Temperature Range: -30℃~+80℃

PCB Board Size: 7x6cm/2.76x2.36"

Package included

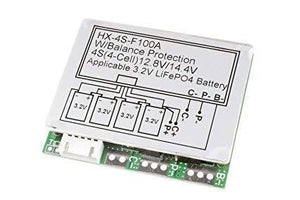

1x LiFePo4 4S 14.4V 100A DC BMS
