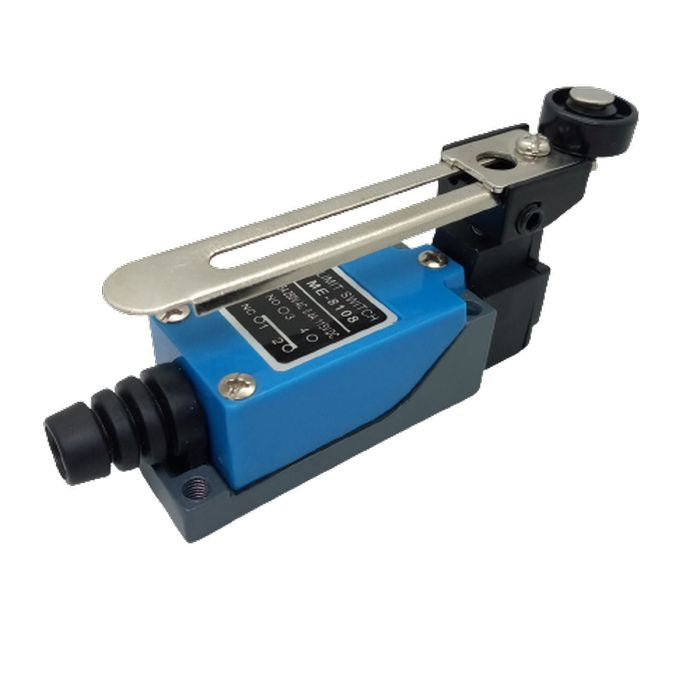

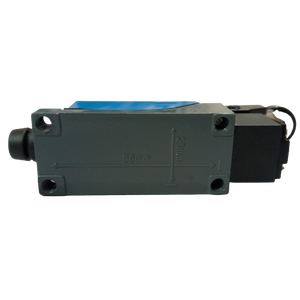

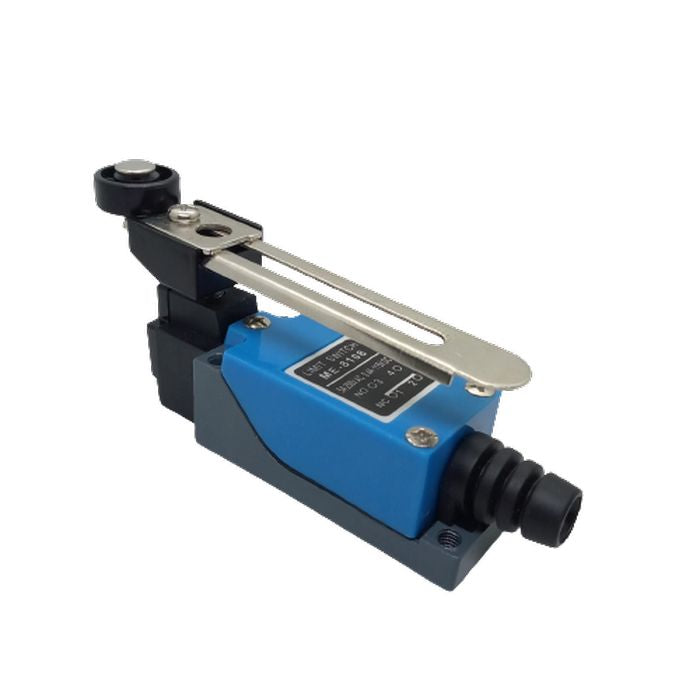

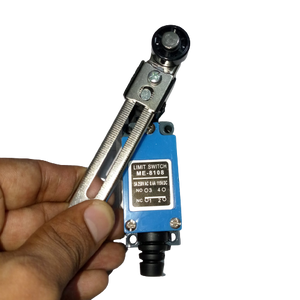

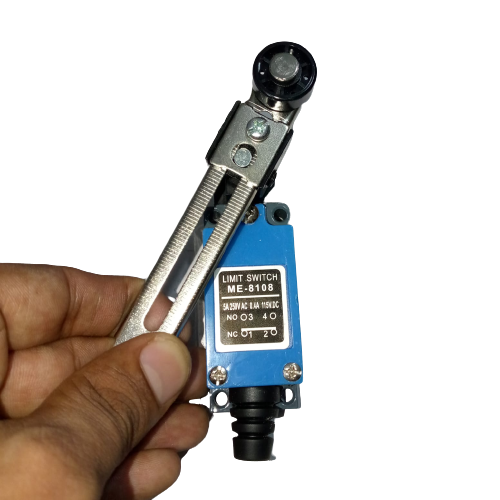

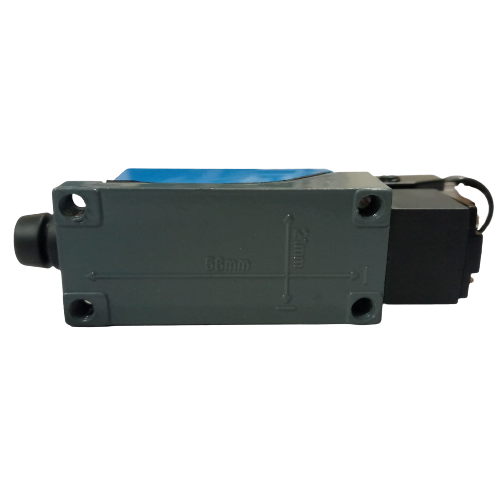

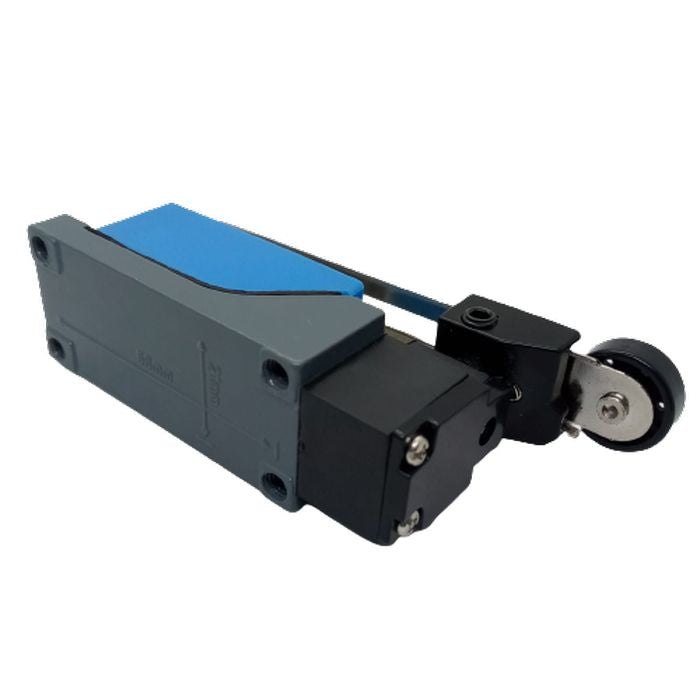

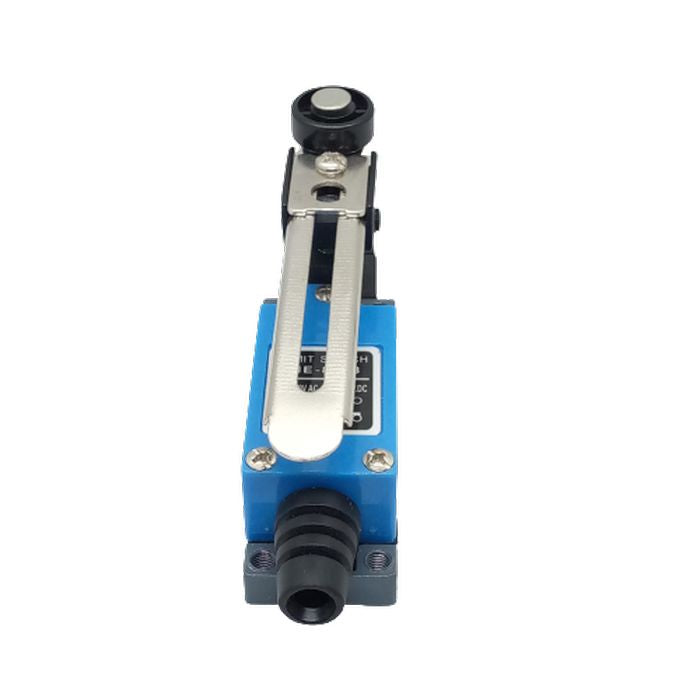

ME-8108 MINI LIMIT SWITCH IN PAKISTAN

Description:

Limit switch, compact design, long mechanical life.
Easy wiring with full open terminals.
High precision, high reliability
Dustproof, waterproof, oil proof construction (IP64)
Double circuit type
5A load current
Strong body with a combination of reinforced plastic and aluminum Die Casting components
Build in basic switch with double spring mechanism

Features:

Product Name mini : Limit Switch

Model No. ME-8108

Actuator Action Momentary

Actuator Type Rotary Adjustable Lever Arm with Roller

Contact Configuration 2 NC + 2 NO

Voltage Rating AC250V, 5A DC115V, 0.4A

Roller Dimension ~1.8 x 0.7cm / 0.7 x 0.3″(D*H)

Lever Arm Length ~11cm / 4.3″

Fixing Thread Diameter ~0.4cm / 0.2″

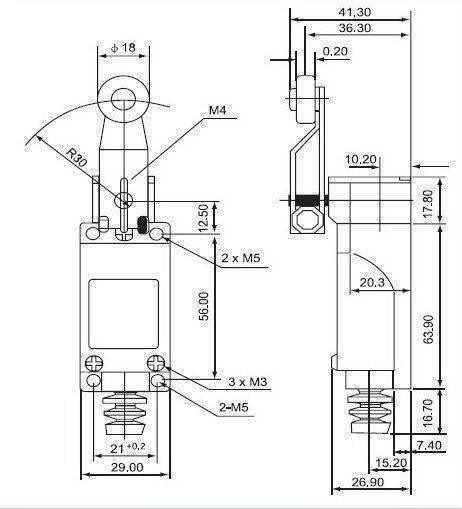

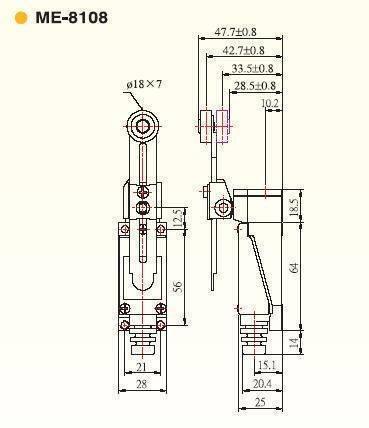

Total Size ~12.3 x 5.2 x 2.8cm / 4.8 x 2 x 1.1″(L*W*H)

Material Resin, Plastic, Metal

Color Blue, Gray, Black

Net Weight 93g
