Sale price Rs.30.00
Log in to use Wishlist
Add to Compare

Pickup available at 16 Hall Road

Usually ready in 24 hours

14d561k Mov Metal Oxide Varistor

14d561k Mov Metal Oxide Varistor

SKU: Dell,B191

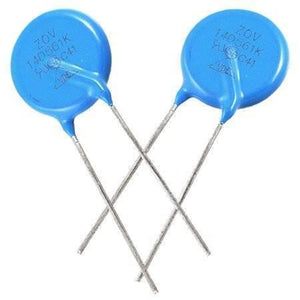

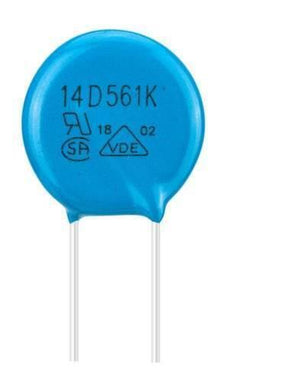

The 14d561k Mov Metal Oxide Varistor is radial leaded varistors that provide ideal circuit protection for surge voltages By offering higher surge ratings than ever before available in such small discs. The maximum peak surges current rating can reach up to 6KA (8/20 μs pulse) to protect against high peak surges, including indirect lightning strike interference, system switching transients, and abnormal fast transients from the power source.

If you don't know about Varistor, then watch this video.




Features of 14d561k Mov Metal Oxide Varistor:

  1. Wide operating voltage (V1mA) ranges from 8V to 1800V
  2. Fast responding to transient over-voltage
  3. Large absorbing transient energy capability
  4. Low clamping ratio and no following-on current
  5. Meets MSL level 1, per J-STD-020

Specifications:

Maximum AC Volts 350VAC
Maximum DC Volts 460VDC
Current-Surge 4.5kA
Package / Case *
Varistor Voltage 560V
Energy 125J
Number of Circuits 1
RoHS Status RoHS Compliant

Package Include:

1x MOV-14D561K
