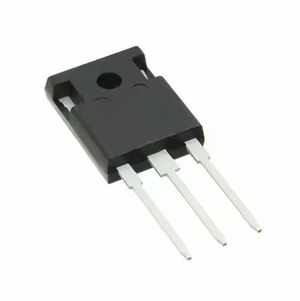

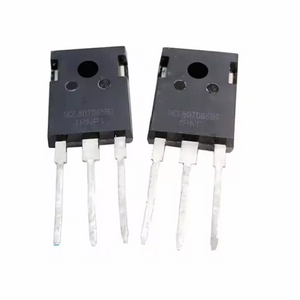

NCE80TD65 IGBT - High-Efficiency Power Transistor for Industrial Applications
The NCE80TD65 is a high-performance insulated-gate bipolar transistor (IGBT) ideal for industrial applications. With fast switching speeds, low on-state voltage drops, and high voltage tolerance, it provides excellent efficiency and reliability for power electronics, including inverters and motor drives.
Benefits
- Fast Switching Speed: Ensures minimal power loss during operation.
- Low Voltage Drop: Enhances energy efficiency in power systems.
- High Voltage Capacity: Supports up to 650V, suitable for high-voltage applications.
- Compact TO-247 Package: Easy to integrate into circuits.
- Thermally Robust Design: Operates reliably in harsh conditions.
Applications
- Industrial Inverters
- Motor Drives and Controls
- DC-DC Converters
- Solar Power Inverters
- UPS Systems
Technical Specifications
| Parameter | Value |
|---|---|
| Collector-Emitter Voltage (VCE) | 650V |
| Continuous Collector Current (IC) | 80A |
| Gate Threshold Voltage (VGE) | 2.0V - 4.0V |
| Switching Speed | Fast Switching |
| Operating Temperature | -55°C to +150°C |
| Package | TO-247 |
External Resources
Related Products
Package Includes
- 1 x NCE80TD65 IGBT Transistor
