Pj-324 Pcb Mount Female Audio Connector Dip Stereo Headphone Jack
PCB Mount Female Audio Connector DIP Stereo Headphone Jack
3.5mm Stereo Jack Socket Chassis with nut PCB Panel Mount Chassis adapter
Specifications:

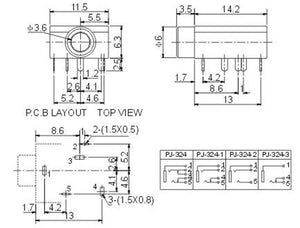

- Size : 1.7 x 1.1 x 0.9cm / 0.67″ x 0.43″ x 0.35″(L*W*H);
- Color : Silver Tone, Black
- Jack Connection: Female
- Contact Resistance: =0.03O
- Insulation Resistance: =100MO
- Withstand Voltage: AC500V(50Hz)/min
- Temperature Range: -40~ 55
- Rated Load: DC 30V 0.5A
- Insertion and Extraction Force: 3~20N
- Lift: 5000 times
- 3.5mm DIP phone jack used for mobile phone,MP3/MP4 player, other electronical equipment.
Package includes:
- 1x PCB-mount Audio female socket
