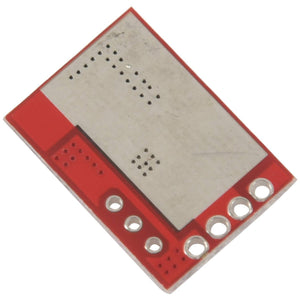

Lifepo4 Tp5000 Lithium Iron Phosphate Battery Charger 3.2v Cell Charger
Pickup available at 16 Hall Road
Usually ready in 24 hours

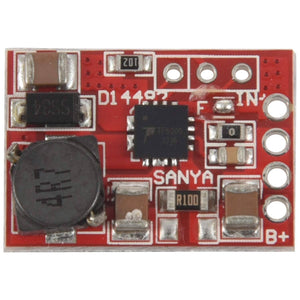

This is a Charging Module for the Lithium Battery based on the TP5000 Battery Charging IC. This module can charge a lithium battery with an current of up to 1A. This module has advance features like battery temperature protection, reverse battery shutdown, and short circuit protection.

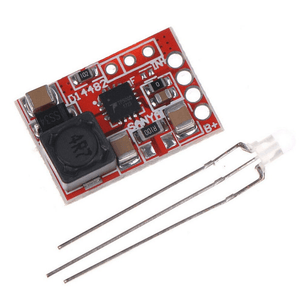

The charging module comes with a dual colour led ,which is used to denote the charging and full status of the battery. THe module also serves as an battery protection board, with built-in automatic recharge function it will automatically charge the battery when it get’s fully discharged.
| Operating Voltage (VDC) |
4.2~9 |
| Operating Temperature (°C) |
-40 to 85 |
| Charging method |
Linear |
| Length (mm) |
22 |
| Width (mm) |
15 |
| Height (mm) |
5 |
| Weight (gm) |
2 |
| Shipment Weight |
0.005 kg |
| Shipment Dimensions |
5 × 3 × 1 cm |
Specifications:
- Color: Red
- Size: 21.5 * 14.5 * 4.2mm
- Material: Metal
- Input: 4.5-9V
- Output voltage: 4.2V / 3.6V plus or minus 1% (circuit board default lithium-ion battery 4.2V)
- Output current: default 1A

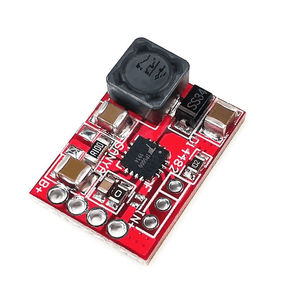

- Copper strip 5A large current small volume inductance, fully closed magnetic low loss low interference!
Package Include:
1 XTP5000 rechargeable board lithium-ion battery lithium iron phosphate battery 1A charging board
