Used 80A 650V GWA80H65DFB (STGWA80H65DFB) – IGBT TO‑247-Digilog.pk
Used 80A 650V GWA80H65DFB (STGWA80H65DFB) – IGBT TO‑247-Digilog.pk
Used 80A 650V GWA80H65DFB (STGWA80H65DFB) – IGBT TO‑247-Digilog.pk
Used 80A 650V GWA80H65DFB (STGWA80H65DFB) – IGBT TO‑247-Digilog.pk

Used 80A 650V GWA80H65DFB (STGWA80H65DFB) – IGBT TO‑247-Digilog.pk

Sale price Rs.240.00
Log in to use Wishlist
Add to Compare

Notify me if back in stock

Enter your email address to be notified if the product becomes available again.
SKU: b150

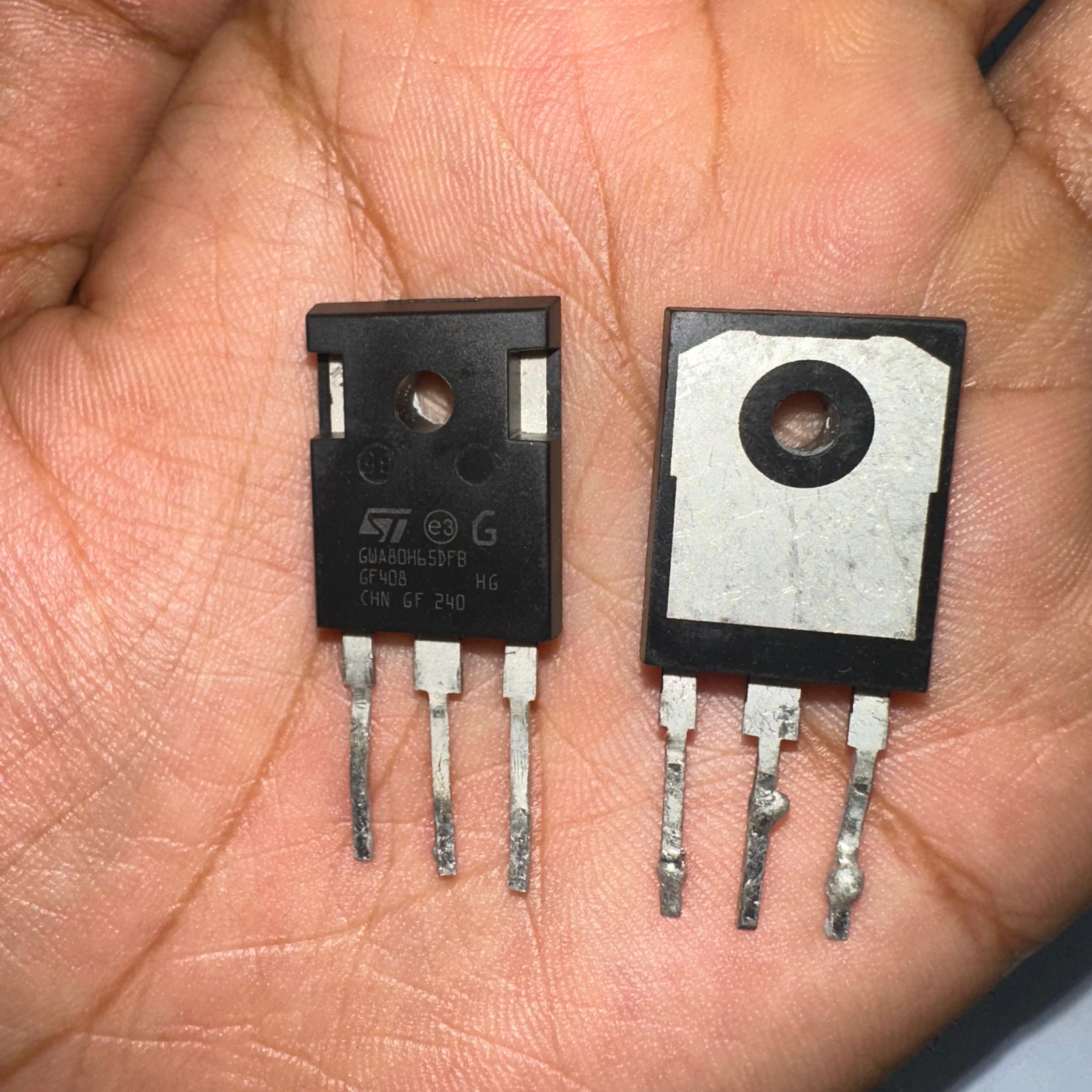

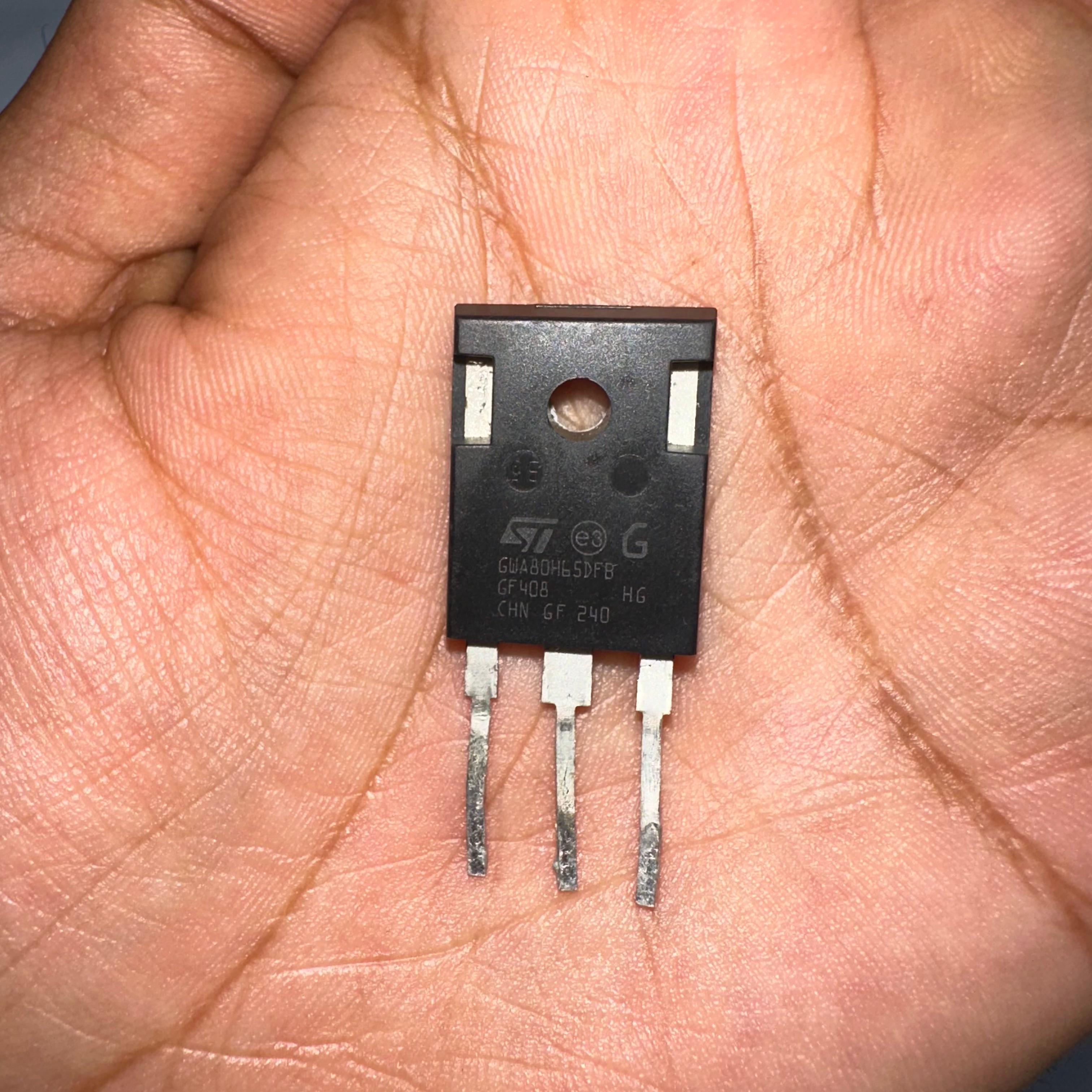

The GWA80H65DFB, also known by the ST part number STGWA80H65DFB, is a Trench Field‑Stop IGBT engineered for high-speed switching applications. Featuring an integrated ultra-fast soft recovery diode, this device offers superior efficiency in hard-switching environments such as solar inverters, high-frequency converters, motor drives, and UPS systems. The tight parameter distribution and positive saturation voltage temperature coefficient make it optimal for demanding, parallel-operated systems. Its TO‑247 long-lead package provides robust thermal handling and easy heatsink integration

Key Specifications

Parameter Value
Collector–Emitter Voltage (V<sub>CES</sub>) 650 V static6.arrow.com+6st.com+6alltransistors.com+6
Continuous Collector Current (I<sub>C</sub>) 80 A @ 100 °C (120 A @ 25 °C)
Pulsed Collector Current 300 A (1 µs pulses)
Saturation Voltage (V<sub>CE(sat)</sub>) 1.6 V typical @ 80 A
Gate–Emitter Voltage (V<sub>GE</sub>) ±20 V (±30 V transient)
Maximum Junction Temperature (T<sub>j</sub>) 175 °C
Thermal Resistance R<sub>θJC</sub>(IGBT)=0.32 °C/W, diode=0.66 °C/W
Switching Energy E<sub>on</sub> ≈2.1 mJ, E<sub>off</sub> ≈1.5 mJ @ 80 A
Gate Charge (Q<sub>g</sub>) ~414 nC

Features & Benefits

  • Designed with advanced Trench Field‑Stop technology for a balanced trade-off between conduction and switching losses

  • Fast recovery diode enables efficient operation in high-frequency circuits

  • Low V<sub>CE(sat)</sub> minimizes conduction losses

  • High thermal tolerance and safe paralleling due to positive V<sub>CE(sat)</sub> temperature coefficient and tight specifications

  • TO‑247 long‑lead package supports robust thermal performance and easy heatsinking

Common Applications

  • Solar string and central inverters

  • AC–DC converters and PFC stages

  • Motor drives and high-power variable-frequency drives

  • UPS systems, welding inverters, and industrial power supplies

Package includes:
1 x Used 80A 650V GWA80H65DFB (STGWA80H65DFB) –  IGBT TO‑247
