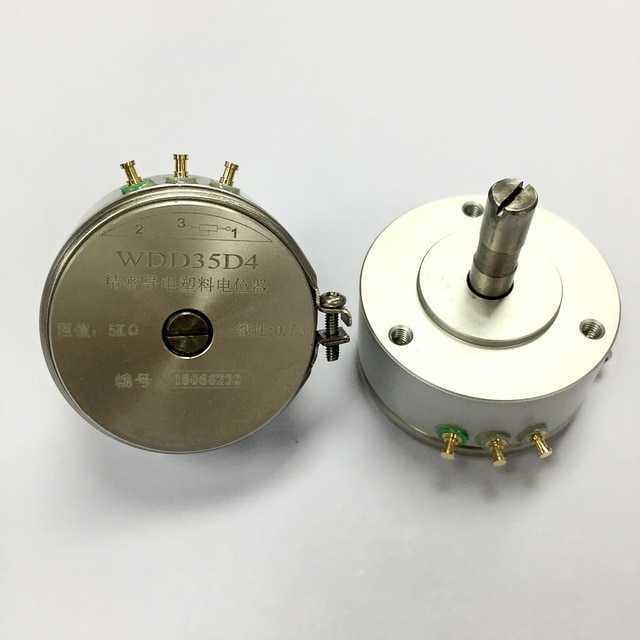

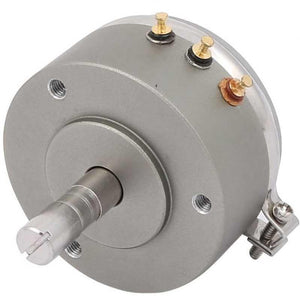

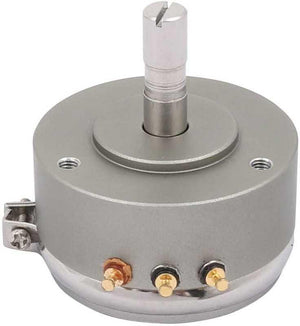

Wdd35d4 5k Ohm 2w Continues Potentiometer Angle Sensor Displacement Sensor Variable Resistor
Accurately measure and monitor angles with the WDD35D4 5K Ohm potentiometer. This reliable sensor is designed for industrial applications and offers precise performance even in challenging environments.
Key Features:
- Outer diameter: 36.5mm
- Shaft: 6mm
- Standard resistance: 5K Ohm
- Resistance tolerance: ± 15%
- Independent linearity: ± 0.5%, ± 0.1%
- Theoretical electrical angle: 345° ± 2°
- Resolution: Unlimited
- Power: 2W (70 degrees)
- Temperature coefficient of resistance: <± 400 ppm/degree
- Operating temperature range: -55°C to 125°C
- Mechanical angle: 360° (continuous)
Applications:
- Industrial automation
- Robotics
- Machine control
- Position sensing
- Angle measurement
